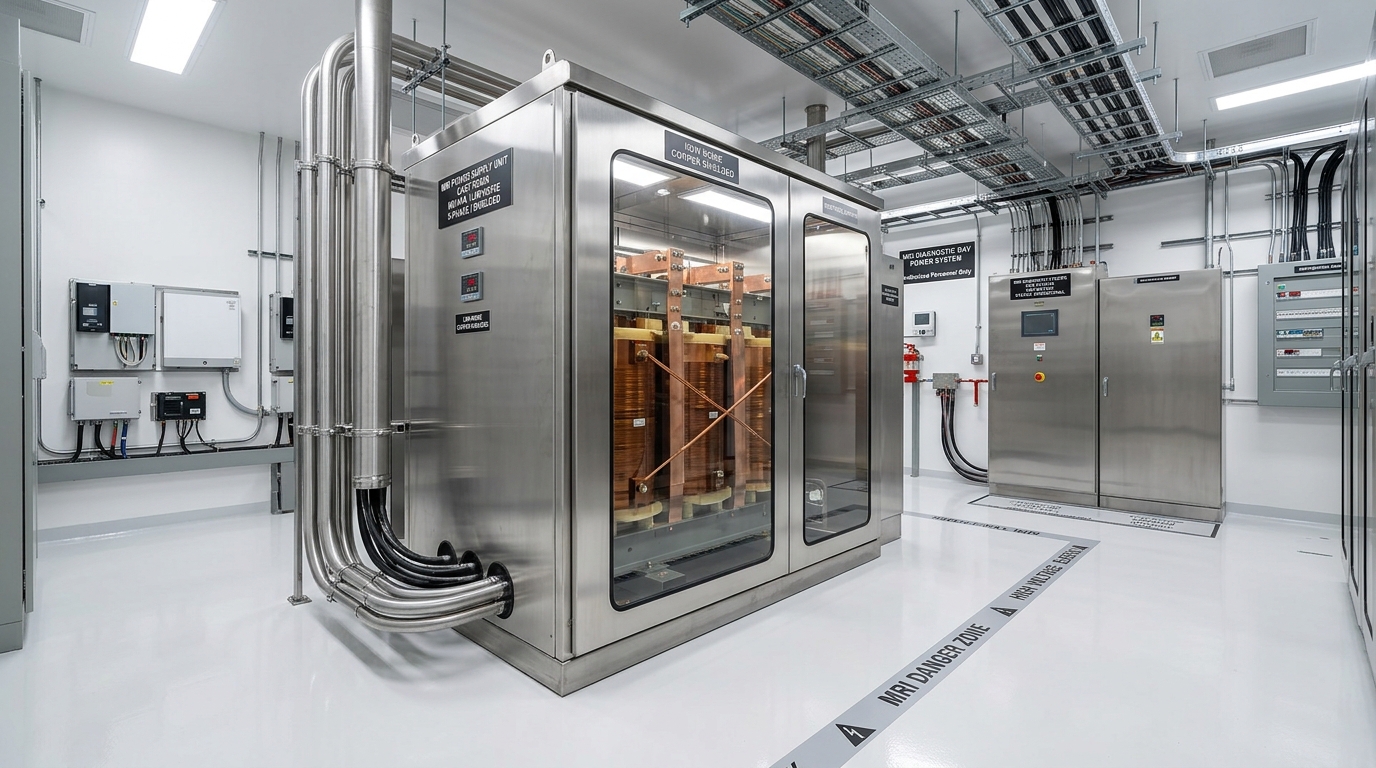

Zero-Downtime Dry-Type Transformers — for hospitals, clean rooms & data centers

Direct Engineering Answer: Healthcare facilities, clean rooms, and mission-critical data centers in Pakistan require dry-type transformers with internal electrostatic copper shielding to attenuate high-frequency electrical noise from UPS rectifiers and medical diagnostic imagers (MRI/CT). Solid cast resin construction guarantees zero fire risk and ultra-low acoustic hum (<50 dB).

1. Uncompromising Power Quality for Mission-Critical Infrastructure

In healthcare complexes (such as Shaukat Khanum Memorial Hospital, Shifa International, Aga Khan University Hospital, and Lahore General Hospital) and enterprise Tier-3 data centers, electrical power is literally a matter of life and death. Modern medical diagnostic imaging suites (3-Tesla MRI machines, 128-slice CT scanners, linear accelerators) and high-density server rack arrays are extraordinarily sensitive to voltage sags, power harmonics, transient spikes, and electromagnetic noise.

Simultaneously, hospital safety regulations strictly prohibit flammable oil transformers inside or below treatment blocks. Cast Resin Dry-Type Transformers provide the ultimate engineering solution: 100% non-flammable safety, zero toxic smoke, and advanced electrical noise attenuation. Explore our dedicated dry-type cast resin transformer systems.

2. The Threat of Electrical Noise on Diagnostic & Server Electronics

Switching power supplies, large Uninterruptible Power Supply (UPS) rectifiers, variable speed surgical ventilation drives, and high-frequency medical laser scalpels generate severe high-frequency common-mode noise and electrical transients (voltage spikes). If transmitted across standard transformer windings via inter-winding capacitance, these disturbances cause image distortion on MRI/ultrasound monitors, corrupted data packet transmission, and premature failure of sensitive microprocessor power supplies.

3. Electrostatic Copper Faraday Shielding Architecture

To isolate critical hospital and IT loads from grid transients, TransfoLine engineers install an Electrostatic Faraday Shield between the high-voltage (11kV) primary and low-voltage (415V) secondary windings. The shield consists of a grounded, continuous sheet of 100% pure electrolytic copper insulated with Nomex® barrier paper.

The electrostatic shield acts as a low-impedance capacitive bypass, capturing high-frequency noise, line transients, and switching spikes from the utility grid and shunting them directly to the substation earth ground before they can inductively or capacitively couple into the sensitive secondary supply.

4. Managing High-Density Server Harmonics (K-Factor & K-13 Design)

Data center server racks and medical imaging equipment are predominantly non-linear loads with high crest factors, drawing harmonic currents rich in 3rd, 5th, and 9th multiples. Triplen harmonics (3rd, 9th, 15th) accumulate in the neutral conductor, causing severe neutral overheating. TransfoLine designs mission-critical dry transformers with 200% rated double-capacity neutral busbars and K-Factor ratings of K-13 to K-20 to prevent overheating and core saturation. Learn about our specialized power quality analysis services.

5. Ultra-Low Acoustic Noise Engineering for Quiet Hospital Environments

Standard industrial transformers emit a constant 100Hz magnetostrictive hum that can reverberate through building concrete structures, disturbing patients in intensive care units (ICU) and recovery wards. TransfoLine achieves ultra-low acoustic sound levels (< 48 to 52 dB) through advanced core engineering:

• Laser-Treated High-Permeability CRGO Steel: Reduces magnetic domain vibration and core hysteresis friction.
• Step-Lap Mitered Core Joints: 45-degree precision step-lap cutting eliminates air gap flux distortion at core corners.
• Anti-Vibration Neoprene Isolation Pads: Heavy elastomeric dampening mounts decouple the core and coil assembly from the steel enclosure base.

6. Redundant Substation Architectures (2N & N+1 Bus-Tie Configurations)

For Tier-3 and Tier-4 reliability, TransfoLine designs dual-transformer substations (2N redundancy) featuring two independent cast resin transformers feeding a split-bus switchboard with an automated motorized bus-tie breaker. In the event of an upstream 11kV feeder trip, the bus-tie closes automatically within 100 milliseconds, ensuring uninterrupted power delivery. Review our turnkey substation EPC capabilities.

7. Environmental Cleanliness & Zero Toxic Vapor Certification

Unlike oil-filled units that can leak into basement soil or VPI units that can outgas solvent vapors, our Cast Resin transformers are certified Class F1 fire-safe and emission-free, making them safe for installation adjacent to hospital pharmaceutical clean rooms and HVAC intake shafts.

8. Earth Leakage Protection & Isolated Power Supply (IPS) Integration

In operating theaters and intensive care units, micro-shock currents as low as 10 μA can be lethal. TransfoLine supplies medical isolation transformers that convert grounded grid power into floating ungrounded IT-systems, monitored continuously by digital insulation resistance monitors.

9. Emergency Power Transfer & Generator Synchronization

In critical facilities, transformers must interface seamlessly with diesel backup generators and rotary UPS units. TransfoLine engineers motorized changeover interlocking systems to prevent out-of-phase paralleling while enabling rapid restoration upon grid failure.

10. TransfoLine 24/7 SLA Engineering Support for Critical Facilities

TransfoLine backs every healthcare and data center installation with dedicated 24/7 Service Level Agreements (SLA), guaranteed 2-hour emergency on-site engineer dispatch, and scheduled preventive diagnostic audits. Explore our preventive AMC maintenance contracts for complete peace of mind.

11. Case Study: Power Quality & Noise Isolation in a 300-Bed Tertiary Hospital

A newly constructed private healthcare facility in Islamabad experienced severe high-frequency image artifacts on their newly installed 3.0-Tesla MRI and PET-CT scanners during peak clinical hours. Diagnostic power monitoring revealed that large central HVAC variable frequency drives and rooftop elevator motors were injecting high-frequency common-mode noise across the building's standard commercial distribution transformer.

TransfoLine replaced the unit with a custom-engineered 1,600 kVA Cast Resin Medical Isolation Transformer featuring dual electrostatic copper Faraday shielding, a 200% oversized neutral conductor (K-13 harmonic rating), and low-vibration step-lap CRGO core laminations. Post-commissioning measurements showed a 94% reduction in common-mode voltage noise, completely crystal-clear MRI diagnostic imaging, and an acoustic sound level of just 46.5 dBA inside the adjacent electrical room.

12. Critical Grounding & Equipotential Bonding in Medical Sub-Stations

In healthcare environments, electrical earthing is vital to life safety. TransfoLine supplies medical isolation substations equipped with dedicated copper equipotential bonding busbars, maintaining earth loop impedance below 0.1 Ω. This ensures that touch voltages during high-energy ground faults remain below 10 millivolts in patient-adjacent medical treatment areas, exceeding IEC 60364-7-710 safety requirements.
