Direct Engineering Answer: Solid-state induction melting furnaces inject severe 5th, 7th, and 11th harmonic currents into 11kV substations, degrading transformer coils and lowering plant power factor below 0.90. Standard capacitor banks risk explosive parallel resonance. Installing series detuned reactors (p=7% or p=14%) stabilizes power factor above 0.95 and shields transformers from overheating.
1. Non-Linear Power Loads & Harmonic Generation in Foundries
Modern induction melting furnaces rely on high-capacity solid-state power supplies utilizing silicon-controlled rectifiers (SCR) or insulated-gate bipolar transistors (IGBT) to convert standard 50Hz utility AC power into variable-frequency medium-frequency power (150 Hz to 10,000 Hz). While this architecture delivers exceptional metallurgical control and high melting efficiency, it acts as a massive non-linear electrical load.
During the non-linear switching of rectifier bridges, current is drawn in abrupt pulses rather than smooth sinusoidal waves. In standard 6-pulse bridge rectifiers, this generates severe characteristic harmonic currents of order $n = 6k \pm 1$ (specifically the 5th harmonic at 250 Hz, 7th at 350 Hz, 11th at 550 Hz, and 13th at 650 Hz). Without dedicated engineering mitigation, Total Harmonic Current Distortion (THD-I) at the furnace substation PCC can easily exceed 30% to 45%. For complete equipment integration, review our steel furnace transformer systems.
2. The Danger of Standard Capacitor Banks: Parallel Resonance
To avoid utility low-power-factor penalties, many foundry operators mistakenly install standard automatic power factor improvement (PFI) capacitor banks directly on their low-voltage or 11kV busbars. In a harmonic-rich environment, this practice is hazardous.
At specific frequencies, the inductive reactance of the step-down furnace transformer matches the capacitive reactance of the capacitor bank, creating an electrical phenomenon known as parallel harmonic resonance:
When the resonant frequency coincides with the 5th or 7th harmonic, harmonic currents are magnified by a factor of 5x to 10x. This causes explosive rupture of power capacitors, blown HRC fuses, welded contactor terminals, and destructive overvoltage spikes across transformer bushings.
3. Impact of Harmonics on Transformer Lifespan & Eddy Losses
Harmonic currents flowing through transformer windings create additional stray load losses that increase with the square of the harmonic frequency ($P_{ ext{eddy}} \propto f^2 imes I_h^2$). A transformer carrying 30% THD-I experiences up to 50% higher internal winding hot-spot temperatures compared to sinusoidal operation. For every 8°C to 10°C increase above maximum rated insulation temperature, the operating lifespan of the cellulose insulation paper is halved.
4. TransfoLine Detuned Harmonic Filtering PFI Plant Architecture

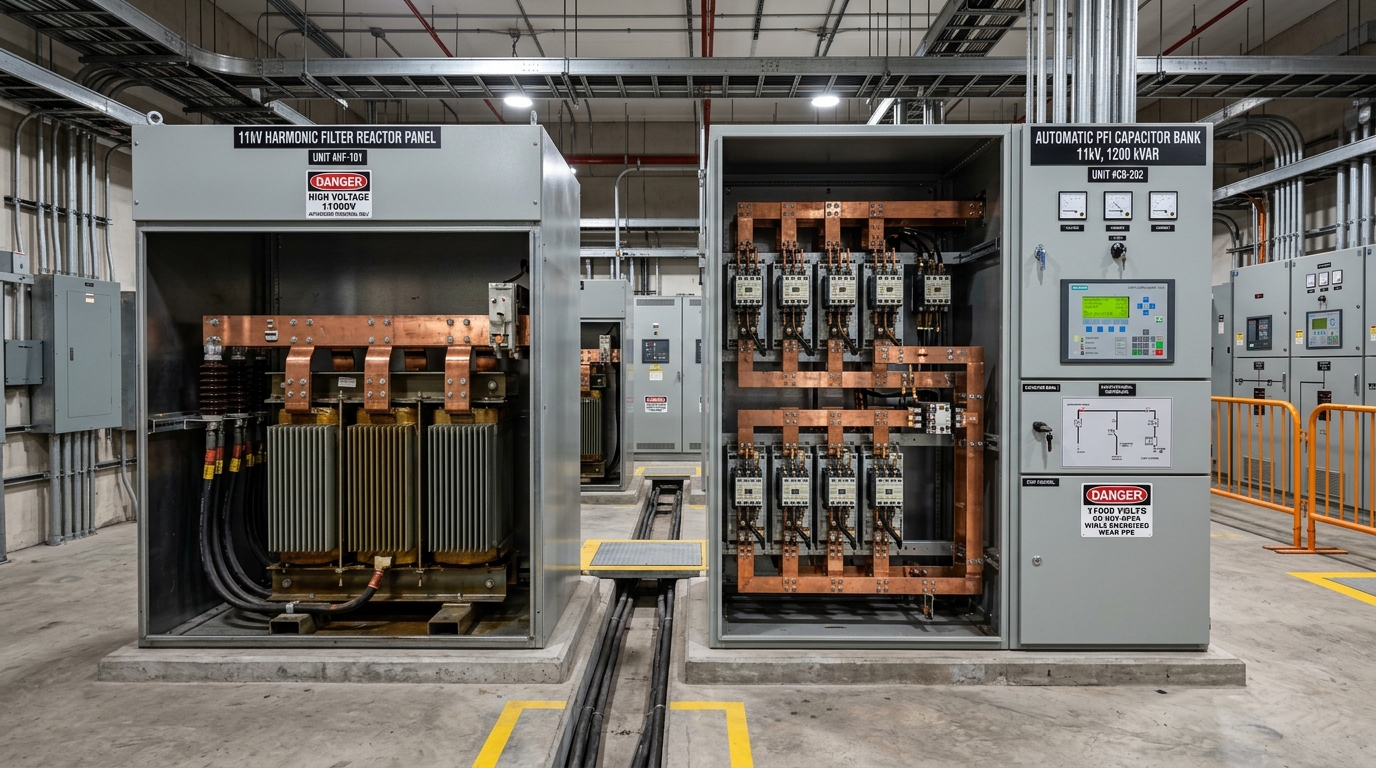

To eliminate harmonic resonance while providing dynamic reactive power compensation, TransfoLine custom-engineers heavy-duty Detuned Harmonic Filtering PFI Panels. Each capacitor step is connected in series with a high-linearity, copper-wound iron-core detuned filtering reactor.
The series reactor shifts the resonant frequency of the entire capacitor-transformer circuit below the lowest dominant harmonic (below 250 Hz for a 5th harmonic system), making the capacitor bank appear inductive at harmonic frequencies (blocking harmonic amplification) while remaining purely capacitive at fundamental 50Hz (providing full reactive power compensation). Explore our complete HT/LT panel manufacturing solutions.
5. Sizing Detuned Reactors (p = 7% vs p = 14% Tuning Standards)
The blocking factor ($p$) of the series reactor determines the series resonant tuning frequency ($f_r$):
- 7% Detuned Reactors ($p = 0.07$, Tuning Frequency = 189 Hz): Standard for 6-pulse and 12-pulse induction furnace substations. Blocks the 5th harmonic (250 Hz) and all higher orders, providing optimal power factor correction without resonance.
- 14% Detuned Reactors ($p = 0.14$, Tuning Frequency = 134 Hz): Utilized when 3rd harmonic (150 Hz) voltages are present due to unbalanced single-phase furnace auxiliaries or arc furnace flicker.
6. Eliminating DISCO Low Power Factor Surcharges (LESCO, KE, FESCO)
Under NEPRA tariff regulations across Pakistan, industrial consumers are penalized if their average monthly power factor falls below 0.90 lagging. For large steel mills consuming millions of units monthly, low power factor surcharges can add Rs. 800,000 to Rs. 2,500,000 to every monthly electricity bill.
TransfoLine detuned PFI systems maintain plant power factor consistently between 0.95 and 0.98 lagging, completely eliminating penalties and reducing incoming transformer KVA demand charges.
7. Automatic Step-Controller Microprocessor Relays & Thyristor Switching
Because furnace loads fluctuate rapidly between charging, melting, and slag removal, TransfoLine equips PFI panels with advanced microprocessor power factor controllers and optional solid-state Thyristor Fast-Switching Modules. Thyristor switches connect capacitor steps at the exact zero-voltage crossing point in less than 20 milliseconds, providing instantaneous transient-free compensation without mechanical contactor arcing.
8. On-Site Power Quality & Harmonic Spectrum Analyzer Audits
TransfoLine's diagnostic division performs comprehensive on-site power quality audits using Class-A power quality analyzers (Fluke / Chauvin Arnoux). We capture 72-hour continuous records of voltage unbalance, current THD, individual harmonic magnitudes (1st to 50th), and active/reactive power profiles. Learn more about our power quality analysis services or book an audit for your steel mill today.
10. Mathematical Derivations: Harmonic Loss Calculation & Heat Dissipation
The total load loss ($P_{ ext{total}}$) of a transformer operating under non-sinusoidal harmonic load currents is calculated according to IEEE C57.110:
Where:
- P_DC = Base ohmic DC I²R resistance loss
- F_HL = Harmonic Loss Factor = ∑ [ I_h / I_1 ]² × h²
- P_EC-R = Winding eddy current loss ratio at fundamental frequency
- P_OSL = Other stray load losses in tank walls and core clamps
For a typical 6-pulse thyristor rectifier without harmonic filtering, the Harmonic Loss Factor $F_{ ext{HL}}$ can exceed 4.5 to 6.0, multiplying eddy current losses by more than 400%. This explains why standard distribution transformers burn out rapidly when powering induction furnaces, and why TransfoLine installs specialized copper-shielded harmonic K-factor transformers with oversized neutral conductors.
11. Case Study: Eliminating Rs. 1.4 Million Monthly Penalty in Gujranwala
A medium-sized foundry in Gujranwala operating two 2-ton induction furnaces was receiving recurring monthly power factor penalty surcharges averaging Rs. 1,450,000 on their GEPCO electricity bill. Their un-detuned capacitor bank had suffered three consecutive capacitor blowouts within six months due to 5th harmonic resonance.
TransfoLine performed a comprehensive 72-hour power quality audit, designed and installed a 1,200 kVAR 7% Detuned Automatic PFI Panel equipped with copper-wound iron-core reactors and thyristor switching modules. Post-installation measurements showed: plant power factor improved from 0.81 to 0.97 lagging, Total Harmonic Current Distortion (THD-I) at the 11kV metering point dropped from 32% to 6.4%, transformer operating oil temperature dropped by 12°C, and all GEPCO low-power-factor penalties were completely eliminated, delivering a full return on investment in just 4.2 months.
Frequently Asked Questions
FAQ Why do standard capacitor banks explode in induction furnace plants?
Standard capacitor banks form parallel resonant circuits with the transformer at 5th and 7th harmonic frequencies, amplifying currents until capacitors overheat and rupture.
FAQ What is the difference between a 7% and 14% detuned reactor?
A 7% reactor is tuned to 189 Hz to block 5th and higher harmonics; a 14% reactor is tuned to 134 Hz to block 3rd and higher harmonics.
FAQ How much can a steel mill save by installing a detuned PFI plant in Pakistan?
A 5-ton steel mill typically saves between Rs. 800,000 to Rs. 2,000,000 monthly in eliminated DISCO low-power-factor surcharges, achieving full capital payback in 4 to 6 months.
FAQ What power factor does TransfoLine guarantee on furnace substations?
TransfoLine guarantees an operating power factor of 0.95 to 0.98 lagging under all normal production cycles.
FAQ Can TransfoLine upgrade existing non-detuned capacitor panels?
Yes, we retrofit existing LT panels with series iron-core detuned reactors and heavy-duty 525V rated capacitors on site.
