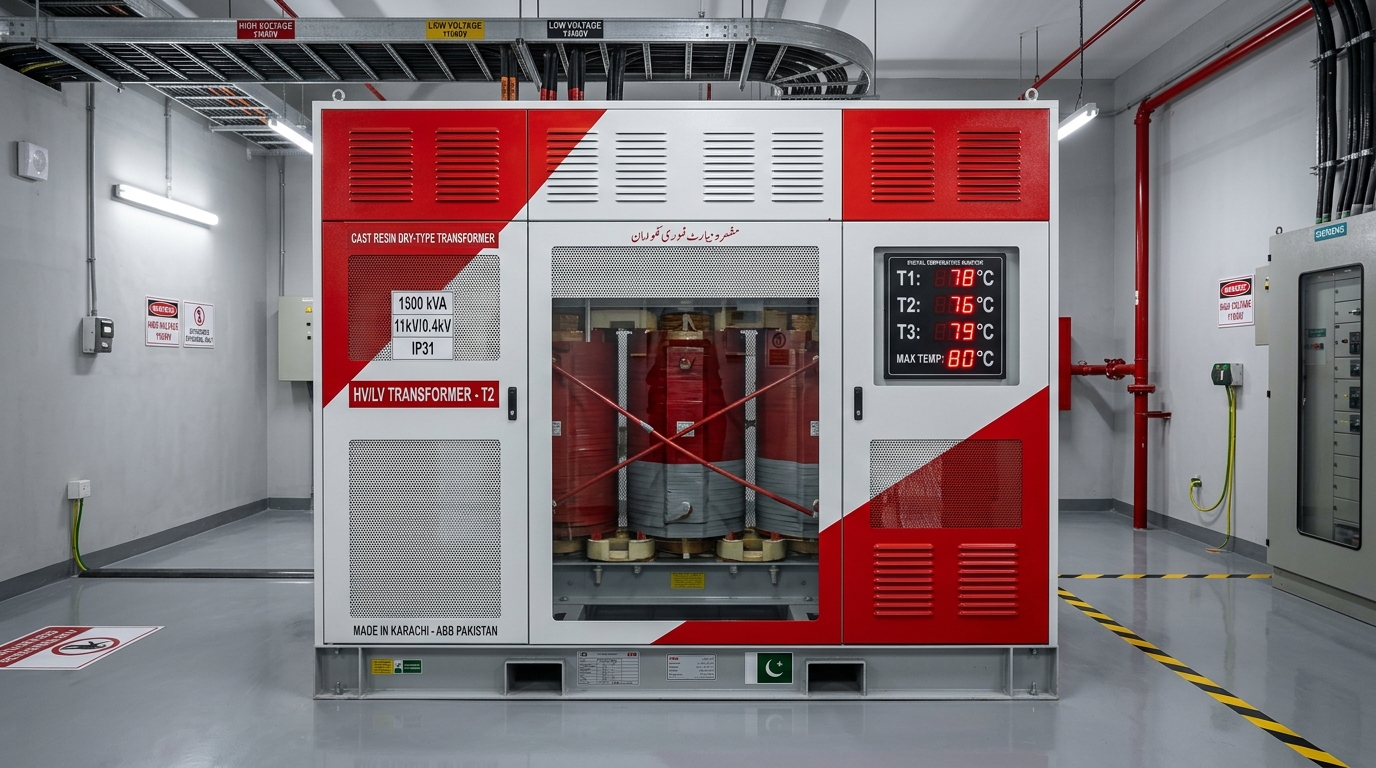

Cast Resin Dry-Type Transformers — zero fire hazard for high-rises & hospitals.
In multi-story commercial towers, shopping malls, medical centers, and hospitals, flammable oil transformers are strictly prohibited. TransfoLine supplies and commissions Cast Resin Dry-Type Transformers (100 kVA to 3,150 kVA) featuring Class F1 self-extinguishing fire safety, ultra-quiet operation, and compact basement footprints without oil soak pits.
Engineered for absolute industrial reliability.
TransfoLine brings 18+ years of field engineering and 500+ completed substations across Pakistan.
Comprehensive technical execution scope.
Commercial Towers & Malls (1–3.15 MVA)
Compact indoor substation step-down transformers feeding high-density centralized HVAC chillers, elevators, and retail lighting.
Hospitals & Healthcare Facilities
Ultra-quiet, vibration-isolated dry transformers ensuring zero electrical noise interference for sensitive medical imaging and ICU power.
Digital PT100 Thermal Protection
Microprocessor temperature controllers wired to embedded PT100 RTD sensors between coils with automatic fan control and safety trips.
Ventilated IP23/IP31 Enclosures
Heavy-gauge powder-coated protective steel enclosures preventing accidental contact while ensuring optimal convective natural air cooling.
From concept to energized power.
A systematic 4-step engineering roadmap delivering transparent timelines and guaranteed performance.
-
01
Civil Layout
Basement Space Planning
Reviewing architectural blueprints to design the most compact indoor substation layout and ventilation airflow paths.
-
02
Custom Build
Vacuum Resin Casting
Vacuum-casting copper coils in pure epoxy resin to guarantee partial discharge levels ≤ 10 pC per IEC 60076-11.
-
03
Installation
Indoor Rigging & Mounting
Maneuvering compact transformer through basement access ramps and coupling with indoor HT/LT switchgear.
-
04
Commissioning
PD & Thermal Calibration
Calibrating embedded PT100 temperature trip modules, executing insulation tests, and energizing indoor power.
Frequently asked questions.
Common questions about this service. Call our engineering team for anything else.
INDOOR SAFETY Why are Cast Resin Dry-Type transformers mandatory for indoor commercial basements in Pakistan?
Cast Resin transformers use solid vacuum-cast epoxy insulation instead of flammable mineral oil. They are certified Class F1 self-extinguishing, meaning they cannot catch fire or explode, making them safe for installation directly inside commercial plazas, shopping malls, and hospitals.
MAINTENANCE What maintenance is required for a Cast Resin Dry-Type transformer?
Unlike oil transformers that require periodic oil sampling, BDV dehydration, and gasket replacements, Cast Resin transformers require virtually zero liquid maintenance—only periodic visual checks and vacuuming of surface dust from cooling air channels.
HEAT RESISTANCE Can Cast Resin transformers handle high ambient summer heat in Pakistan?
Yes. TransfoLine Cast Resin transformers are engineered with high-temperature Class F (155°C) or Class H (180°C) insulation systems and cross-flow cooling fans that ensure reliable continuous operation even in 48°C ambient summer conditions.
