Hattar Industrial Estate: 100 kVA to 8000 kVA Transformer Supply, 24/7 Repair & Substation EPC
Single-window high-voltage electrical engineering for heavy steel rerolling mills, marble cutting plants, chemical complexes, and food processing factories across Hattar Industrial Estate (Phases 1–7), Hattar SEZ, Haripur, Taxila, and the Rawalpindi/Islamabad industrial belt. Zero-downtime mobile testing vans, emergency standby loaner transformers, on-site oil dehydration, and certified electrical commissioning.
Stationing specialized mobile testing vans and heavy crane transport for rapid M-15 Hazara Motorway and GT Road transit into Hattar.
Diagnostic Electrical Profile of Hattar Industrial Estate (Haripur, KPK).
As the premier heavy industrial zone of Khyber Pakhtunkhwa situated along the Hazara foothills, Hattar houses over 400 operational industrial units. Mountainous lightning strike impulses, conductive marble cutting and limestone dust, severe mechanical vibration from heavy stone processing, and volatile PESCO 132kV/11kV grid feeder surges create four unique high-voltage failure mechanisms.
Steel Rerolling & Ghee Mill Cyclic Overloads
Hattar's steel mills and continuous oil/ghee processing complexes operate under severe inductive surges. Sudden mechanical motor stalling and heavy cyclical loads trigger intense electromagnetic winding vibration, loosening core clamps and causing inter-turn insulation wear. We provide hydraulically torque-clamped pure copper rewinding.
Mountain Lightning Surges & Impulse Punctures
Located near the Margalla and Hazara foothills, Hattar substations face severe atmospheric lightning activity during seasonal storms. High-voltage transient traveling waves breach standard 11kV lightning arresters, puncturing transformer high-voltage coil insulation and exploding bushings. We install station-class gapless ZnO surge arresters.
Conductive Marble Dust & Bushing Tracking
Over 80 marble, granite, and limestone cutting units in Hattar generate fine mineral slurry and airborne stone dust. When wet mountain fog blankets Hattar, this conductive dust forms a surface leakage path on outdoor transformer porcelain bushings, causing catastrophic phase-to-earth flashovers.
Severe Feeder Sags & Winter Oil Sludging
11kV feeders fed by the 132kV Hattar and Haripur grid substations suffer from acute voltage sags during peak industrial shifts. In cold winter nights, sub-zero oil temperatures dramatically increase dielectric fluid viscosity, impeding natural thermosiphon cooling and causing localized coil hot spots.
New & Certified-Used Distribution Transformers (100 kVA to 8000 kVA)
We supply factory-tested, PESCO-compliant, and WAPDA DDS-84 certified oil-immersed (ONAN) and dry-type cast resin transformers ranging from 100 kVA to 8000 kVA directly from our nearby Raiwind Road depot. Whether you require a standard 200 kVA transformer, a medium 630 kVA transformer, or a heavy 5000 kVA to 8000 kVA step-up power transformer, every unit undergoes complete test bay routine certification backed by our 1-year warranty.
- Burnt Transformer Buyback & Trade-In: Get an instant credit valuation for your damaged or burnt transformer, drastically reducing capital expenditure on your new or certified-used unit.
- Fast Crane Delivery to Hattar: Heavy flatbed trailers and mobile boom crane offloading directly onto your factory plinth in Hattar Phases 1–7 or Hattar SEZ.
- Complete Documentation: Stamped test reports including turns ratio, winding resistance, Megger insulation resistance, and dielectric oil BDV values for immediate PESCO grid clearance.
Transformer Capacities for Hattar & KPK Factories (100 kVA to 8000 kVA)
Select your required transformer rating to receive an immediate technical specification sheet and wholesale quote.
| Transformer Keyword / Capacity | Voltage Ratio | Typical Hattar Industry Application | Cooling / Standard | Depot Status | Wholesale Pricing |
|---|---|---|---|---|---|
| 100 kVA transformer | 11kV / 415V | Small marble cutting sheds, warehouses, administrative plazas | ONAN / WAPDA DDS-84 | ● In Stock (Raiwind) | Quote Now → |
| 200 kVA transformer | 11kV / 415V | Crusher auxiliary units, small stone cutting lines | ONAN / Mineral Oil | ● In Stock (Raiwind) | Quote Now → |
| 315 kVA transformer | 11kV / 415V | Medium marble processing, ghee packaging lines | ONAN / Mineral Oil | ● In Stock (Raiwind) | Quote Now → |
| 400 kVA transformer | 11kV / 415V | Food processing, flour mills, chemical blending sheds | ONAN / Mineral Oil | ● In Stock (Raiwind) | Quote Now → |
| 500 kVA transformer | 11kV / 415V | Heavy marble gang-saws, soap and oil manufacturing | ONAN / Mineral Oil | ● In Stock (Raiwind) | Quote Now → |
| 630 kVA transformer | 11kV / 415V | Steel fabrication, plastic compounding, industrial gas plants | ONAN / Mineral Oil | ● In Stock (Raiwind) | Quote Now → |
| 1000 kVA transformer | 11kV / 415V | Heavy steel rerolling mills, continuous ghee processing | ONAN / Cast Resin | ● In Stock (Raiwind) | Quote Now → |
| 1250 kVA transformer | 11kV / 415V | Major chemical synthesis, automated marble tile complexes | ONAN / Cast Resin | ● In Stock (Raiwind) | Quote Now → |
| 1500 kVA transformer | 11kV / 415V | Large steel billet casting mills, multi-line cement blending | ONAN / Mineral Oil | ● Ready Dispatch | Quote Now → |
| 2000 kVA transformer | 11kV / 415V | Heavy induction melting furnaces, primary chemical complexes | ONAN / Mineral Oil | ● Ready Dispatch | Quote Now → |
| 2500 kVA transformer | 11kV / 415V | Hattar SEZ central distribution substations, 2.5 MW solar arrays | ONAN / OFWF | ● Ready Dispatch | Quote Now → |
| 5000 kVA transformer | 11kV / 33kV / 66kV | Heavy metallurgy plants, 5 MW solar step-up installations | ONAN / ONAF | ● Custom Build | Quote Now → |
| 8000 kVA transformer | 11kV / 132kV | 132kV/11kV primary industrial grid step-down substations | ONAF / OFWF | ● Custom Build | Quote Now → |
Fast, Easy-to-Understand Transformer Repair for Factory Owners.
When an industrial transformer trips or burns in Hattar, you don't need complicated electrical jargon. You need to know two things: how fast power will be back, and how to stop it from burning again. Here is exactly how our 24/7 repair works.
What Happens When Your Transformer Fails? Our 4-Step Recovery:
- Step 1: Rapid On-Site Mobile Triage: You call our 24-hour emergency line at 0300 6919113 or 0314 4641288. Our emergency testing van arrives directly at your Hattar Industrial Estate factory gate with digital Megger, TTR, and winding resistance meters to pinpoint whether the fault is an external bushing flashover or internal coil damage.
- Step 2: Emergency Standby Loaner Hookup: If your coils are burnt and require workshop rewinding, we crane-mount a temporary loaner transformer (100 kVA to 2500 kVA) from our Raiwind yard right onto your plinth. Your factory resumes production in hours rather than waiting days.

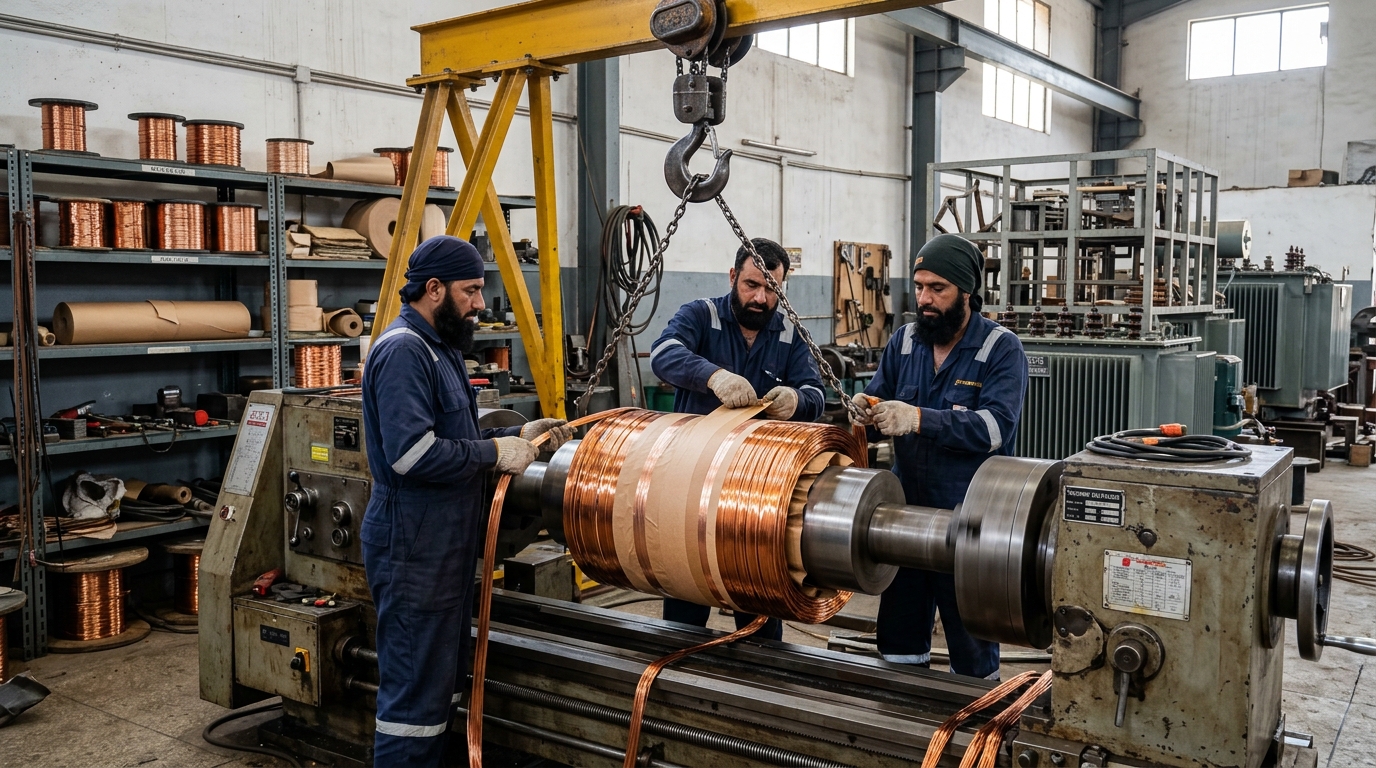

- Step 3: 99.99% Pure Electrolytic Copper Rewinding: At our heavy workshop bay, burnt coils are replaced with 99.99% pure electrolytic copper wire with Class H Nomex paper insulation. We never use cheap re-melted scrap copper or disguised aluminium wire.
- Step 4: Vacuum Oven Baking & Test Bay Certification: Rewound coils are baked in vacuum ovens, submerged in dielectric varnish, re-clamped under hydraulic pressure, and tested in our high-voltage test bay before being re-installed with a 1-year operational warranty.
Why Transformer Oil Dehydration Saves You Millions in Replacement Costs.
Think of transformer oil as the blood of your electrical substation. It does two critical jobs: it cools the copper coils and prevents high-voltage sparks (flashovers). Here is why routine on-site oil filtration is the smartest investment for your Hattar factory.
Simple Facts About Transformer Oil Dielectric Breakdown:

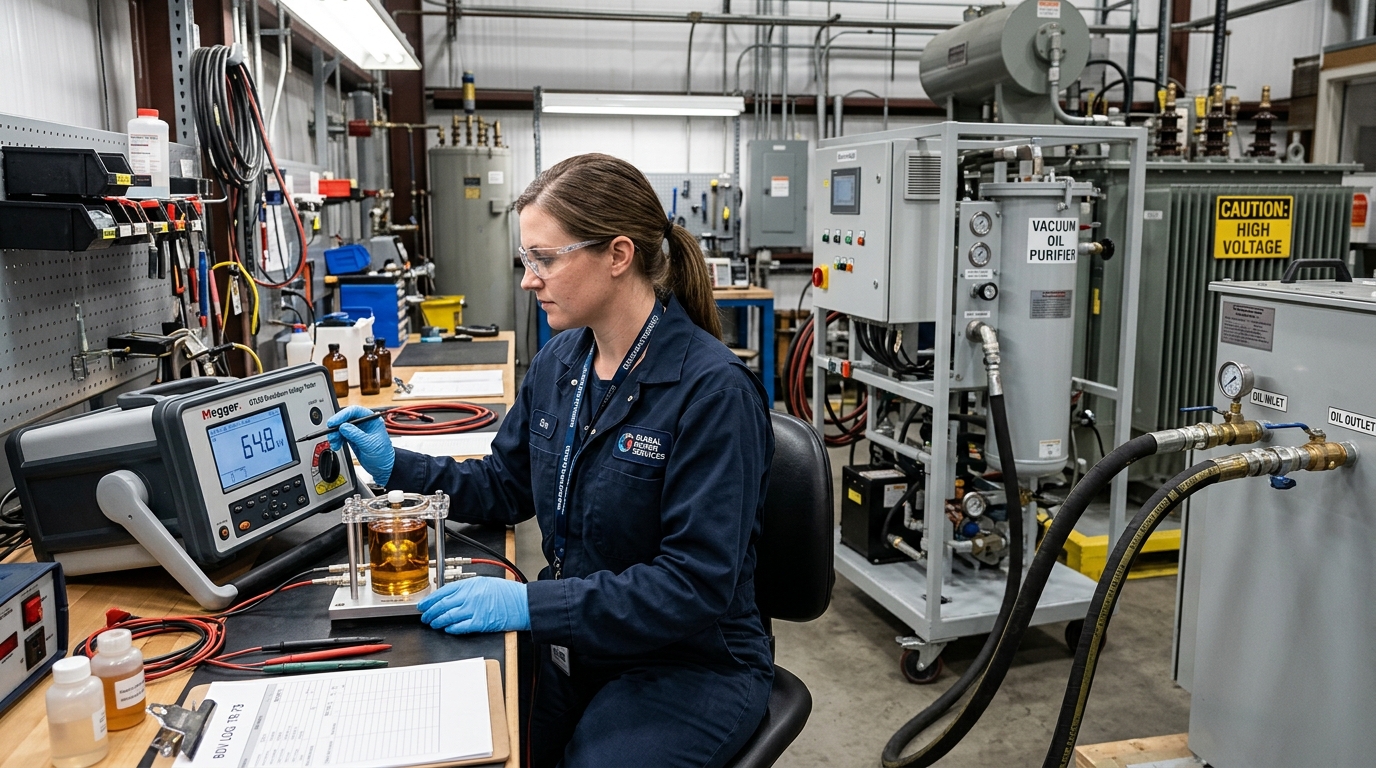

During humid Lahore monsoons, water vapor enters your transformer through breathing vents. Even a tiny amount of moisture (just 30 drops of water in 1,000 liters of oil) cuts the oil's insulation strength by over 70%. When oil breakdown voltage drops below 25 kV, internal electrical arcing occurs, burning the coils completely.
- 100% On-Site Service at Your Plinth: You do NOT need to unbolt, crane-lift, or transport your transformer to a workshop. Our specialized mobile vacuum filtration truck connects directly to your substation on-site in Hattar Industrial Estate (Phases 1 to 7).
- Restores BDV Above 65 kV in 6 to 8 Hours: Our two-stage vacuum filtration plant heats the oil under deep vacuum (<0.05 mbar), evaporating all dissolved moisture down to <10 ppm and filtering sludge.
- Extends Transformer Life by 5 to 10 Years: Regular dehydration prevents paper insulation embrittlement, saving you millions of rupees in premature transformer replacement.
- Instant Stamped Test Reports: We test the oil right before your eyes using digital IEC 60156 spark breakdown testers, handing you an official test certificate for insurance and safety audits.
Certified Electrical Testing & Substation Commissioning in Hattar.
TransfoLine provides complete diagnostic testing, pre-commissioning verification, and statutory PESCO compliance testing for industrial substations, cables, switchgears, and earthing systems using world-class calibrated test equipment from Megger, OMICRON, FLIR, and Fluke.
Transformer Diagnostic Testing (DGA & TTR)
Turns Ratio (TTR) verification, winding resistance balance, excitation current, magnetic balance, and Dissolved Gas Analysis (DGA) to detect internal arcing, overheating, and core faults.
Transformer Testing Details →Insulation Resistance & Megger Testing
5kV/10kV automated Megger testing measuring Insulation Resistance (IR), Polarization Index (PI), and Dielectric Absorption Ratio (DAR) across HT/LT windings and bushings.
Megger Testing Guide →High-Voltage (Hipot) & Cable Testing
AC/DC high potential withstand testing, Very Low Frequency (VLF 0.1Hz) cable testing, sheath integrity verification, and underground cable fault location for 11kV feeders.
HV Hipot Capabilities →Protection Relay Secondary Injection (OMICRON)
Secondary current and voltage injection using OMICRON CMC test sets for numerical overcurrent (ANSI 50/51), earth fault (50N/51N), differential, and anti-islanding relays.
Relay Testing Protocol →Vacuum Circuit Breaker (VCB) Timing & CRM
Contact resistance measurement (CRM / Micro-ohmmeter), breaker opening/closing timing synchronization, vacuum bottle integrity checks, and motorized spring charging verification.
Breaker Testing Guide →Thermal Imaging Infrared Inspection (FLIR)
High-resolution FLIR infrared thermography scans under full factory load to detect loose busbar joints, overheated cable terminations, tap changer hotspots, and radiator fin blocks.
Thermal Inspection Specs →Earth Ground Resistance & Soil Resistivity
Fall-of-potential 3-point and 4-point earth ground testing, step & touch potential surveys, and chemical earthing pit verification ensuring <1.0 Ohm grid compliance for PESCO.
Earthing Testing Specs →Power Quality & Harmonics Analysis
Fluke 3-phase power quality analyzers measuring total harmonic distortion (THD-V & THD-I), voltage sags, power factor dips, and transient surges across Hattar and Haripur industrial feeders.
Power Quality Details →Need Comprehensive Substation Commissioning for a New Factory Plot?
We issue official stamped engineering test reports accepted by PESCO, insurance assessors, and multinational safety auditors.
Turnkey 11kV Substation EPC & Industrial Solar Synchronization in Hattar.
From new industrial connections in Hattar Phases 1–7 and Hattar SEZ to megawatt rooftop solar synchronization, TransfoLine engineers, manufactures, tests, and commissions complete medium-voltage switchgear substations.
HT / LT Panels & Vacuum Circuit Breakers (VCB)
Custom-fabricated 11kV Indoor/Outdoor VCB panels equipped with numerical microprocessor protection relays (ANSI 50/51 overcurrent, 50N/51N earth fault) and motorized spring charging for instant trip clearance.
Automatic Power Factor Improvement (PFI)
Heavy-duty detuned PFI capacitor banks ($p=7\%$ or $p=14\%$) engineered to eliminate monthly PESCO low power factor penalties and withstand severe harmonic distortion from Hattar steel melting furnaces and marble processing saws.
Industrial Solar Step-Up Substation Packages
Complete 0.8kV to 11kV/33kV inverter step-up transformers with bi-directional green meters, anti-islanding relays (IEEE 1547), and zero-export controllers for 200kW to 2MW commercial rooftop solar arrays.
Single-Window PESCO Approvals & Energization
We manage all statutory compliance with PESCO Hattar and IESCO Rawalpindi grid divisions: load sanctioning, site testing, PTW permits, and official DISCO witness testing for seamless energization.
Proven Substation Deployments Across Hattar Industrial Estate.
Recent high-voltage engineering interventions executed by TransfoLine for leading manufacturing facilities in Hattar Phases 1–7 and Haripur.
Emergency Standby 1500 kVA Loaner & Lightning Damage Overhaul
A severe lightning surge along the Hazara foothills struck an 11kV incoming feeder, destroying the primary bushings and puncturing the HV windings of a 1500 kVA furnace transformer. TransfoLine mobilized a heavy crane and 1500 kVA standby loaner unit directly to Hattar, restored mill operations in 10 hours, and completed Class-H pure copper rewinding in 4 days.
On-Site High-Vacuum Oil Dehydration & BDV Elevation to 68 kV
Intense airborne marble dust and winter moisture contamination dropped transformer dielectric breakdown voltage down to 21 kV, causing frequent overcurrent breaker trips. Our mobile vacuum dehydration plant connected directly to the transformer on-site in Hattar, purifying 3,500 liters of oil and elevating BDV to 68 kV in 8 hours without disrupting shifts.
Turnkey 1.5 MW Industrial Rooftop Solar Substation EPC
Designed and commissioned a complete 11kV step-up substation featuring a 1600 kVA solar inverter transformer (0.8kV to 11kV), indoor motorized VCB switchgear, anti-islanding protection relays, and zero-export integration, obtaining 100% first-pass PESCO net-metering approvals.
Frequently Asked Questions.
Clear technical answers regarding emergency dispatch times, standby loaners, PESCO grid coordination, testing, and pricing for Hattar factory directors.
EMERGENCY How quickly can TransfoLine dispatch emergency support to Hattar Industrial Estate?
Operating dedicated mobile emergency test vans along the M-15 Hazara Motorway and GT Road corridor, our rapid response team reaches any factory gate across Hattar Phases 1 to 7 and Hattar SEZ within 20 to 30 minutes.
LOANER How does the emergency standby loaner transformer service operate?
If diagnostic testing confirms internal coil burnout requiring workshop rewinding, we immediately dispatch a flatbed truck and mobile boom crane with an equivalent certified standby loaner transformer (100 kVA to 2500 kVA) from our Raiwind yard. Our team connects temporary power leads so your factory resumes production while your original unit is rewound, eliminating days of costly production blackout.
TESTING Which electrical testing services can you perform on-site in Hattar?
Our on-site testing division performs Megger insulation resistance, turns ratio (TTR), winding resistance, VLF Hipot cable withstand tests, OMICRON protection relay secondary injection, circuit breaker timing, FLIR thermal imaging inspections, earth pit fall-of-potential testing, and power quality harmonic audits. Every test is backed by an official certified report.
PESCO Do you coordinate planned shutdowns and permits with PESCO Hattar / Haripur / Chungi Amar Sidhu?
Yes. Our licensed engineers manage all utility paperwork directly with the PESCO Sundar Sub-Division and Manga Mandi 132kV Grid staff. We submit PTW (Permit to Work) applications, coordinate feeder isolation, execute high-voltage work safely, and issue stamped test certificates conforming to WAPDA DDS-84 for re-energization.
SOLAR Can you install step-up transformers and green meters for industrial solar in Hattar?
Yes. We engineer complete single-window solar substation interconnections: 0.8kV to 11kV inverter step-up transformers with electrostatic shields, 11kV vacuum circuit breakers (VCBs), bi-directional green metering panels, and complete NEPRA net-metering approvals from application to final PESCO grid inspection.
ON-SITE Can oil filtration, gasket leak repairs, and bushing replacements be done on-site?
Yes. Minor repairs—such as high-vacuum oil dehydration to boost BDV above 65 kV, replacing degraded Nitrile cork gaskets, changing sight glasses, and replacing cracked HT/LT porcelain bushings—are completed directly at your factory substation plinth in 6 to 8 hours without transporting the transformer.
Request Hattar on-site dispatch or wholesale quote.
Facing an unexpected transformer trip, oil leak, or planning a new 11kV substation in Hattar Industrial Estate or Hattar SEZ? Our high-voltage engineering team is ready for rapid mobilization.
