Earth Ground Testing & Soil Resistivity in Pakistan.

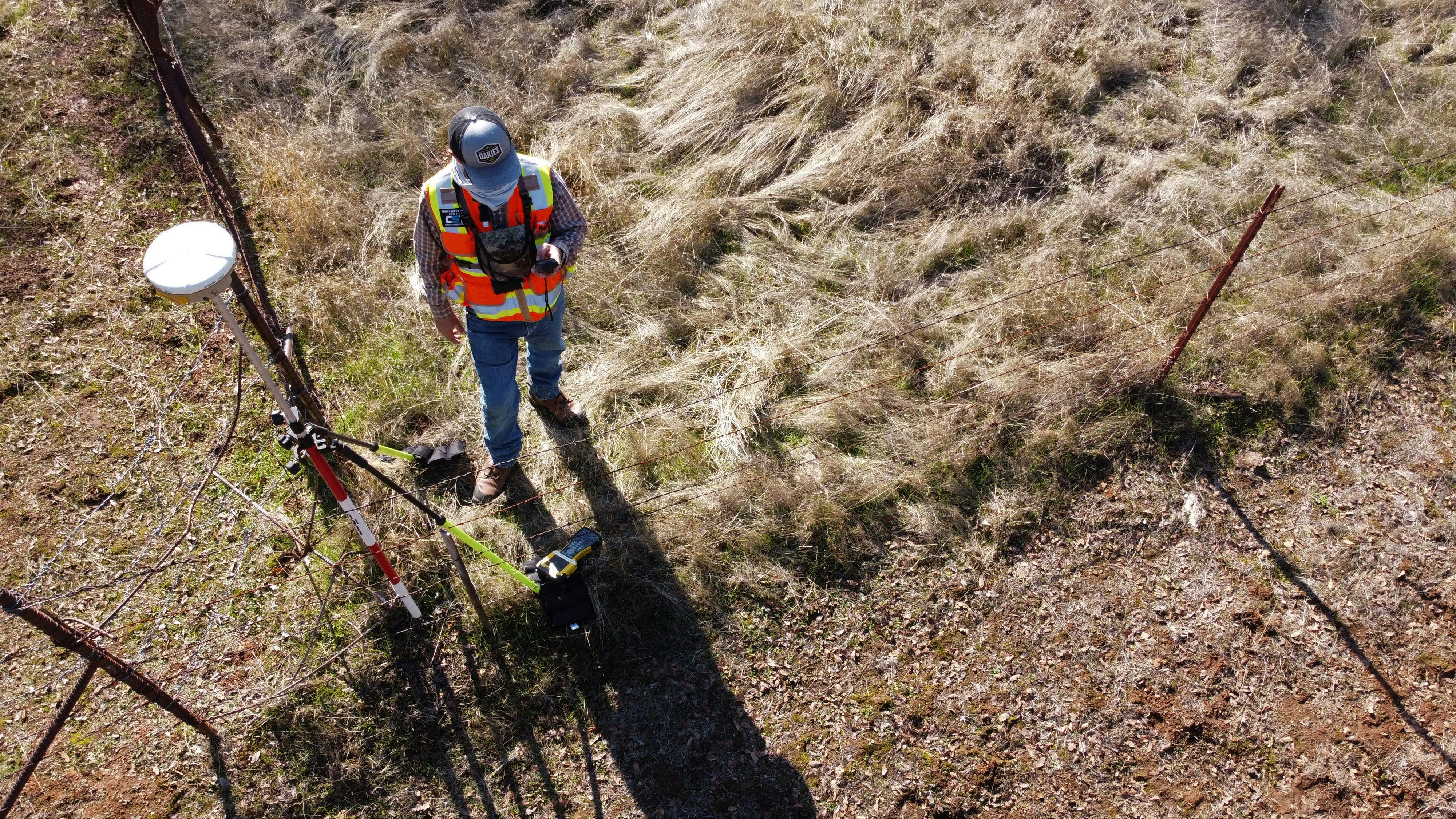

TransfoLine delivers certified Earth Ground Resistance Testing and Soil Resistivity Surveys across Pakistan using calibrated four-terminal digital ground testers from Megger and Fluke. We test industrial earth pits, transformer neutral grounding, lightning protection arresters, and substation grounding grids to ensure absolute life safety and zero equipment surge damage.
What is Earth Ground Resistance Testing?
Earth ground testing is the diagnostic evaluation of an electrical grounding electrode or grid to measure its ohmic resistance to true earth mass. A low-resistance grounding path (≤ 1Ω for substations, ≤ 5Ω for industrial power panels) ensures that high fault currents and lightning surges safely dissipate into the ground without elevating chassis voltage to lethal levels.
3-Point Fall-of-Potential Testing
Using the IEEE 81 standard 62% rule, we inject a test current into the earth electrode and auxiliary current stake, measuring voltage drop with a potential probe across multiple distances to plot the true resistance plateau.
4-Point Wenner Soil Resistivity Survey
Four equally spaced electrodes inject current and measure voltage to determine soil resistivity (Ω·m) at varying depths, providing critical data for sizing new chemical earthing and grounding grid designs.
Grounding & Soil Diagnostic Methods
Standard Maximum Earth Resistance Values
| Installation Type | Governing Standard | Max Acceptable Resistance | Recommended Action if Exceeded |
|---|---|---|---|
| Grid Substation Grounding Grid | IEEE 80 / IEC 61936 | ≤ 1.0 Ω (ideally ≤ 0.5 Ω) | Add parallel deep driven rods or ground enhancement material |
| Power Transformer Neutral Pit | IEEE 142 (Green Book) | ≤ 2.0 Ω | Recharge pit with chemical earthing compound / Bentonite |
| Industrial Main LT Switchboards | NFPA 70 / NEC 250 | ≤ 5.0 Ω | Clean corroded copper clamps and tighten bonding joints |
| Lightning Protection (Arresters) | IEC 62305 / NFPA 780 | ≤ 10.0 Ω | Interconnect with main ground ring via transient earth clamps |
Frequently Asked Questions.
Expert guidance on grounding systems and soil testing.
CHEMICAL EARTHING What causes earth pit resistance to increase over time?
Soil moisture depletion during dry seasons, corrosion of copper-bonded rods, mechanical loosening of terminal clamps, and washing away of conductive salt/charcoal compounds all increase resistance over time.
REPORT Do you provide official certification for utility/insurance audits?
Yes. We deliver signed and stamped engineering test reports with exact resistance graphs, tester calibration certificates, and recommendations compliant with LESCO/K-Electric and insurance audit standards.
Book Earth Ground Testing.
Our grounding test engineers deploy nationwide across Pakistan.
Need annual earth pit testing, Wenner soil resistivity surveys, or chemical earthing upgrade? Contact us directly.
