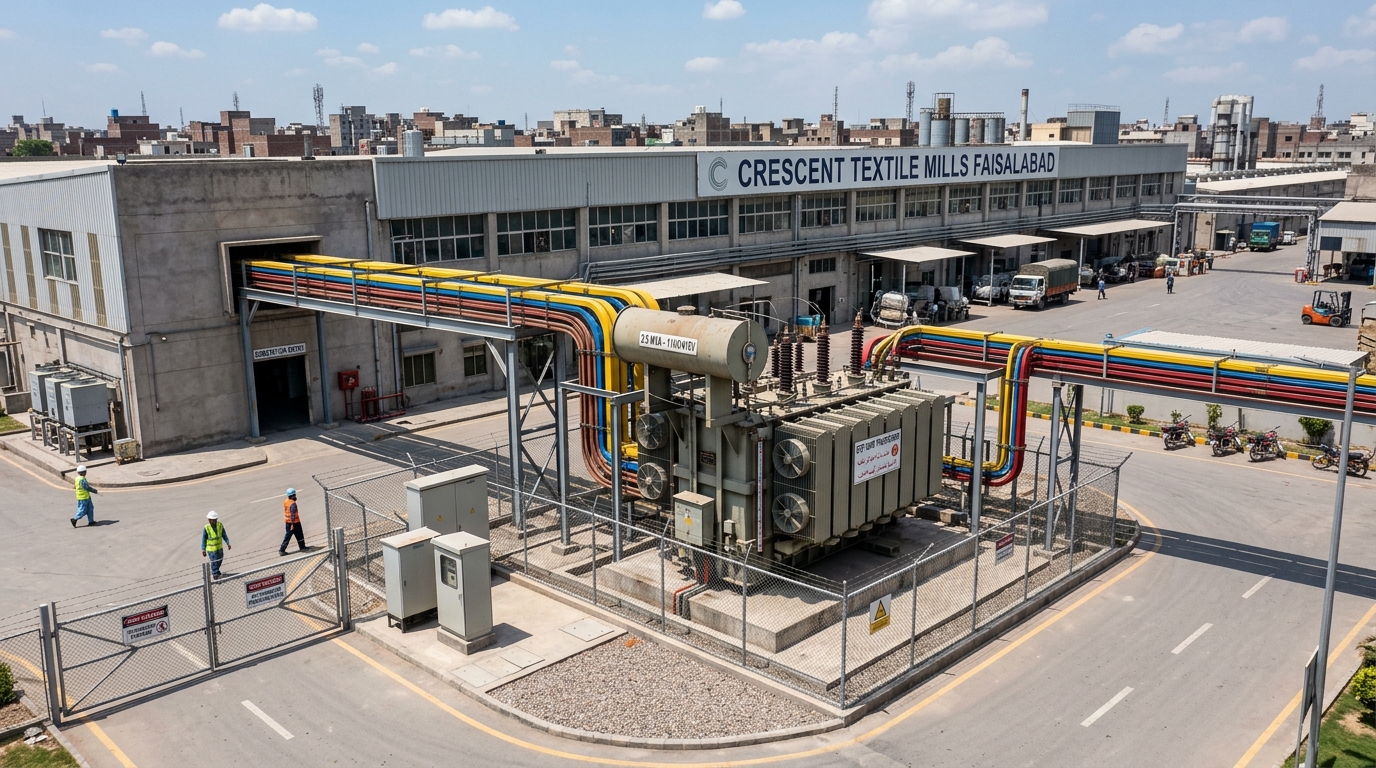

2–6 MVA Power Transformers for Textile Mills — continuous loads & harmonic mitigation.
Textile spinning, weaving, and dyeing mills in Faisalabad, Sheikhupura, and Karachi demand non-stop 24/7/365 electrical reliability. TransfoLine builds heavy-duty 2 MVA to 6 MVA K-Factor rated power transformers specifically engineered to eliminate overheating from VFD non-linear harmonics.
Engineered for absolute industrial reliability.
TransfoLine brings 18+ years of field engineering and 500+ completed substations across Pakistan.
Comprehensive technical execution scope.
Spinning Mill Substations (2.5–4.0 MVA)
High-capacity power distribution for ring frames, blow rooms, and carding sections with high inductive motor loads.
Weaving Shed Transformers (1.5–2.5 MVA)
Reinforced mechanical clamping to withstand rapid pulsating surge loads from hundreds of shuttleless air-jet looms.
Dyeing & Finishing Units (3.0–6.0 MVA)
Heavy-duty step-down transformers handling large thermal heating elements and continuous multi-pump water circulation systems.
Active Harmonic Filtering & PFI
Complete turnkey integration with active harmonic filter banks and capacitor PFI panels maintaining power factor ≥ 0.98.
From concept to energized power.
A systematic 4-step engineering roadmap delivering transparent timelines and guaranteed performance.
-
01
Load Audit
VFD Harmonic Analysis
Measuring total harmonic distortion (THD) and sizing the exact K-factor transformer required for your loom/spindle inventory.
-
02
Custom Build
Heavy-Duty Fabrication
Winding with multiple transposed copper conductors, low-loss CRGO core steel, and robust conservator radiators.
-
03
Installation
Substation Bus Duct Coupling
Mounting transformer on reinforced pad and connecting heavy-amperage copper bus ducts to main LT panels.
-
04
Handover
Live Load Full Testing
Executing full-load thermal imaging scans and power quality analysis to certify harmonic-free plant energization.
Frequently asked questions.
Common questions about this service. Call our engineering team for anything else.
HARMONICS Why do textile mills require K-Factor rated transformers?
Textile spinning and weaving mills utilize large numbers of Variable Frequency Drives (VFDs) that inject severe harmonic currents. K-Factor rated transformers are specially engineered with transposed conductors and oversized neutrals to dissipate harmonic heat without derating.
SIZING What size transformer is needed for a 50,000-spindle spinning mill?
A 50,000-spindle modern spinning mill with blow room, carding, ring frames, and humidification plants typically requires between 3.5 MVA and 5.0 MVA total substation capacity.
VOLTAGE How does an On-Load Tap Changer (OLTC) benefit textile factories?
An On-Load Tap Changer automatically regulates secondary 415V voltage in real-time as utility 11kV grid voltage fluctuates, preventing expensive electronic motor drive trips without interrupting factory production.
