Direct Engineering Answer: Cast Resin Dry-Type transformers (IEC 60076-11) require online Partial Discharge testing (PD ≤ 10 pC) and PT100 temperature controller trip calibration (130°C Alarm / 150°C Trip), whereas oil-cooled transformers (IEC 60076-1) rely on BDV dielectric oil checks and DGA gas chromatography. TransfoLine provides complete diagnostic testing for both technologies nationwide.

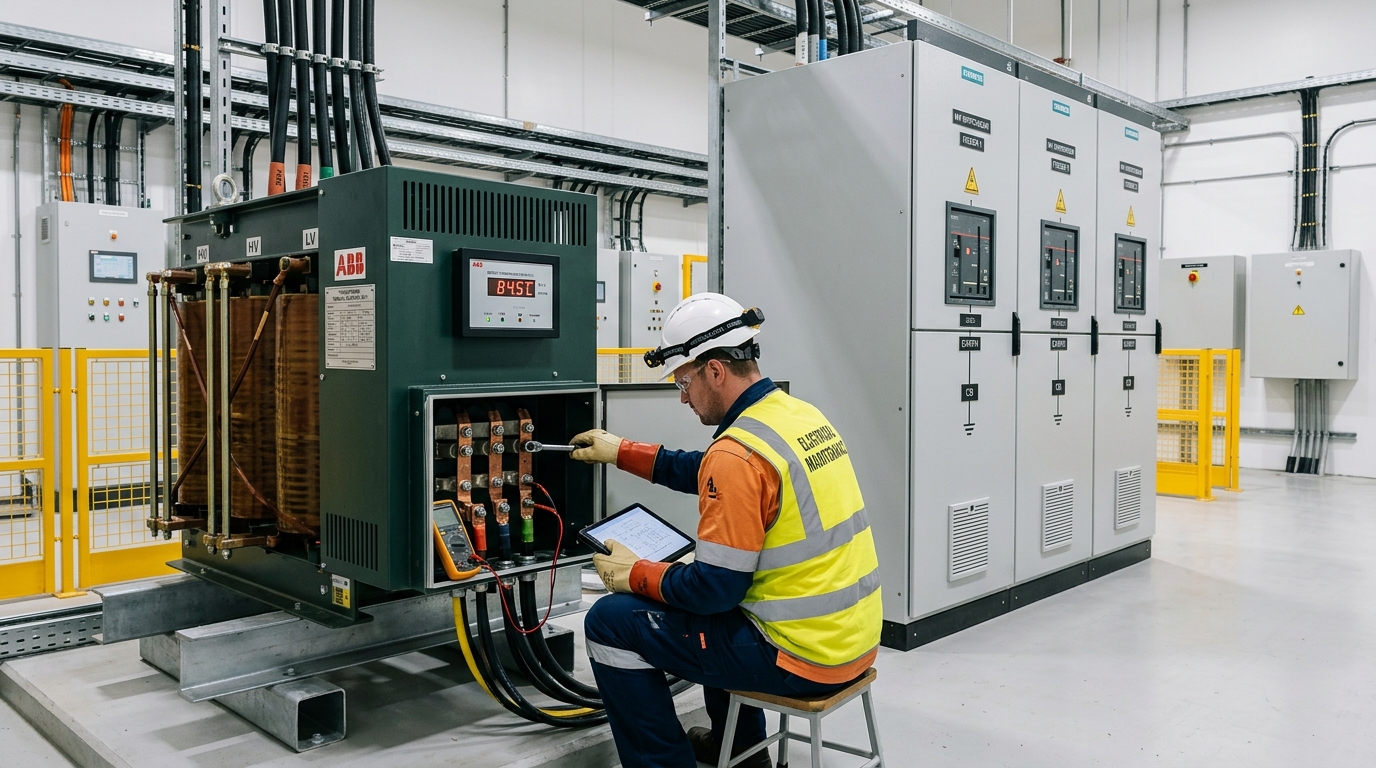

Why Technology-Specific Testing is Crucial
While both transformer types step down 11kV grid voltage to 415V 3-phase, their physical construction and cooling mechanisms are entirely different:
- Oil-Immersed Transformers (IEC 60076-1): Winding coils are immersed in flammable mineral oil that circulates via natural convection, transferring heat to external cooling fins.
- Cast Resin Dry-Type Transformers (IEC 60076-11): Winding coils are vacuum-encapsulated in solid epoxy resin mixed with silica filler, relying on natural air circulation (AN) or forced fan cooling (AF) within an IP23/IP31 ventilated sheet-metal enclosure.
Diagnostic Testing Comparison: Dry-Type vs. Oil-Cooled
| Test Parameter | Cast Resin Dry-Type (IEC 60076-11) | Oil-Immersed (IEC 60076-1) |
|---|---|---|
| Governing Standard | IEC 60076-11 / IEEE C57.12.01 | IEC 60076-1 / IEEE C57.12.00 |
| Primary Dielectric Test | Partial Discharge (PD ≤ 10 pC) | Oil BDV ≥ 50kV & DGA Analysis |
| Insulation Resistance (Megger) | 500 MΩ to > 5 GΩ at 2.5kV | > 1 GΩ to 10 GΩ at 5kV (PI > 2.0) |
| Thermal Protection System | PT100 RTD sensors embedded between HV/LV coils | Dial-type Oil & Winding Temperature Indicators (OTI / WTI) |
| Trip & Alarm Settings | Class F: Alarm 130°C / Trip 150°C | Oil: Alarm 85°C / Trip 95°C |
| Fire & Civil Safety Classification | F1 (Zero Flammability) | Flammable (Requires blast walls & oil pit) |
1. Partial Discharge (PD) Testing: The Gold Standard for Dry Transformers
Because cast resin coils are solid epoxy, any microscopic air pocket or void created during vacuum manufacturing becomes a point of electrical ionization. Under continuous 11kV stress, partial discharge erodes the epoxy resin from the inside out, leading to sudden inter-turn breakdown.
Per IEC 60076-11 Section 22, an induced overvoltage test with online partial discharge measurement is conducted. The PD magnitude must remain below 10 picoCoulombs (pC) at 1.3 times rated line-to-ground voltage.
2. Temperature Controller & Embedded PT100 Sensor Calibration
During diagnostic commissioning, our engineers inject precision resistance decade signals into the electronic temperature controller to verify:
- Forced Fan Auto-Start: Cross-flow cooling fans trigger at 100°C to boost capacity by up to 25% (AF rating).
- High Temperature Alarm: Audible alarm contacts close at 130°C (Class F insulation).
- Emergency Breaker Trip: Dry contact trips the incoming vacuum circuit breaker (VCB) instantaneously at 150°C.
3. Surface Tracking & Environmental Inspection
In Pakistan's humid monsoon season and industrial environments (e.g. Lahore, Karachi, Gujranwala), airborne conductive dust and moisture settle on exterior epoxy rib surfaces. Regular testing includes high-voltage DC surface insulation resistance testing, cleaning with non-conductive solvent cleaners, and inspecting for micro-fissures with UV corona cameras.
Turnkey Supply, Testing & Commissioning with TransfoLine
Whether your facility utilizes WAPDA-approved oil-cooled distribution transformers or indoor Cast Resin Dry-Type units, TransfoLine delivers end-to-end engineering, specialized diagnostic testing rigs, certified equipment supply, and emergency repairs nationwide.
Need Certified Diagnostic Testing or Emergency Support?
TransfoLine's PEC-registered engineers mobilize nationwide within 24 hours with mobile testing vans and complete diagnostic instrumentation.
Consult with a Testing Engineer →Frequently Asked Questions
Why are Cast Resin Dry-Type transformers preferred for commercial plazas and hospitals in Pakistan?
Cast Resin Dry-Type transformers contain no flammable oil, eliminating fire and explosion hazards in enclosed spaces. They meet strict civil defense fire codes and require no oil containment pits or fire blast walls.
What is the primary diagnostic test for dry-type transformers?
Partial Discharge (PD) testing per IEC 60076-11 is the most critical test for cast resin dry-type transformers. High-voltage resin voids must exhibit partial discharge levels below 10 picoCoulombs (pC) at 1.3 times rated voltage.
